aluminium tooling plate

1998 items in stock

Get aluminium tooling plate online or find other Tools & Blades products

More Details

Product Details
Related Products

Product Information

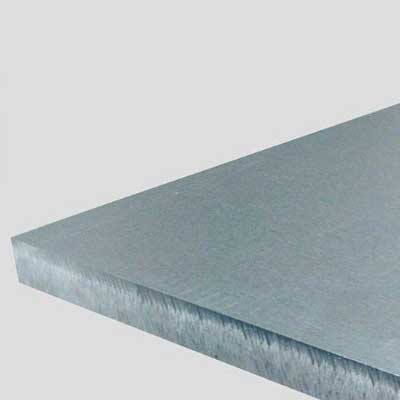

aluminium tooling plate are medium strength alloy plates with exceptional corrosion resistance. Aluminum sheet plates are created by surpassing aluminum between rolls underneath pressure, it becomes thinner and longer in the moving direction.

Mechanical strength, rust resistance and dimensional stability are key aspects that give these aluminium tooling plate the advantage over standard aluminum plates. The aluminium tooling plate lend itself only to resistance welding. These plates have good workability but varies in tempers. The alloy plates are available in variety of sizes and thickness.

These aluminium tooling plate are made from marine grade alloys and find usage in manufacturing of fast ferries, yachts, navy or passenger vessels and small pleasure crafts.

Specifications

Alloy	Temper	Thickness	Width	Length
1050 3003 2024 5005 5052 5754 5083 5086 6061 6063 6082 7075	O H111 H112 H116 F T3 T4 T6 T651	4.5-220mm	500-2250mm	1000-6000mm

Chemical Composition % Max.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Zr	Other		Al
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Zr	Each	Total	Al
1050	0.25	0.40	0.05	0.05	0.05	–	–	0.05	0.03	–	0.03	–	99.50
2017	0.20 -0.8	0.70	3.5 -4.5	0.40 -1.0	0.40 -0.8	0.10	–	0.25	0.15	–	0.05	0.15	Remainder
2024	0.50	0.50	3.8 -4.9	0.30 -0.9	1.2 -1.8	0.10	–	0.25	0.15		0.05	0.15	Remainder
3003	>0.60	0.70	0.05 -0.20	1.0 -1.5	–	–	–	0.10	–	–	0.05	0.15	Remainder
5005	0.30	0.70	0.20	0.20	0.50 -1.1	0.10	–	0.25	–	–	0.05	0.15	Remainder
5052	0.25	0.40	0.10	0.10	2.2 -2.8	0.15 -0.35	–	0.15	–	–	0.05	0.15	Remainder
5754	0.40	0.40	0.10	0.50	2.6 -3.6	0.30	–	0.20	0.15	–	0.05	0.15	Remainder
5083	0.40	0.40	0.10	0.40 -1.0	4.0 -4.9	0.05 -0.25	–	0.25	0.15	–	0.05	0.15	Remainder
5086	0.40	0.50	0.10	0.20 -0.7	3.5 -4.5	0.05 -0.25	–	0.25	0.15	–	0.05	0.15	Remainder
6061	0.40 -0.8	0.70	0.15 -0.40	0.15	0.8 -1.2	0.04 -0.35	–	0.25	0.15	–	0.05	0.15	Remainder
6063	0.20 -0.6	0.35	0.10	0.10	0.45 -0.9	0.10	–	0.10	0.10	–	0.05	0.15	Remainder
6082	0.70 -1.3	0.50	0.10	0.40- 1.0	0.60 -1.2	0.25	–	0.20	0.10	–	0.05	0.15	Remainder
7075	0.40	0.50	1.2 -2.0	0.30	2.1 -2.9	0.18 -0.28	–	5.1 -6.1	0.20	–	0.05	0.15	Remainder

Featured Products

5083 Aluminum Alloy
Available in marine grade tempers H116, H321, H323 to spec ASTM B928. This is an excellent alloy, which is primarily used for its corrosion resistant properties. With possessing good welding capabilities for fabricating vessels it is a good standard engineering alloy. This alloy is commonly used in Europe and Asia.

5086 Aluminum Alloy
Available in marine grade tempers H116, H321; to spec ASTM B928. Tempers O, H112, H32; to spec ASTM B209. The marine grade alloy is very good at inter granular corrosion and possess better welding and forming properties. This alloy is commonly used in North America.

5454 Aluminum Alloy
The alloy is most commonly used where excellent forming ability is required and is available in O, H112, H32, H34; to specification ASTM B209 Tempers. It serves as the manufacturing material for large pressure vessels and certain marine fabricated products.

5052 H32 Sheet & plate
It is an alloy possessing good strength and welding ability, which is also easy to form and fabricate. This alloy is not considered a true marine alloy.

6061 T6 Sheet & plate
It is a heat treated alloy possessing higher strength and is used in many general engineering applications. This alloy is also not considered as true marine alloy.
